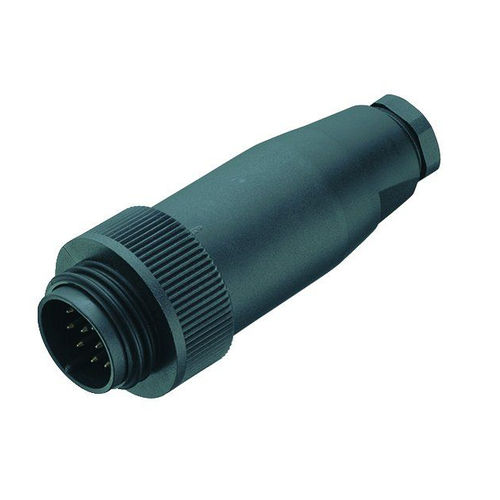

Electrical power supply connector 694 series

DINcircularmale

RD30 Male cable connector, Contacts: 4+PE, 10.0-12.0 mm, unshielded, screw clamp, IP65, ESTI+, VDE Connector design - Male cable connector Version - Connector pin straight Connector locking system - screw Termination - screw clamp Degree of protection - IP65 Cross-sectional area - 2.50 mm² / AWG 14 Cable outlet - 10.0-12.0 mm Temperature range from/to - -40 °C / 100 °C Tightening torque sleeve - 2.0 Nm Tightening torque pressing screw - 1.25 Nm Mechanical operation - > 500 Mating cycles Weight (g) - 73.78 Customs tariff number - 85369010
