Radio-frequency connector 707 series

DINright-anglecircular

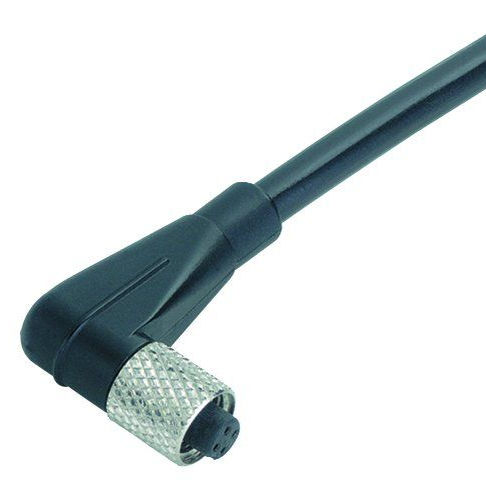

M5 Female angled connector, Contacts: 3, unshielded, moulded on cable, IP67, UL, M5x0.5, PUR black, 3 x 0.14 mm², 2 m Notice - Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right. Connector design - Female angled connector Cable length - 2 m Version - Connector socket angled Connector locking system - screw Termination - moulded on cable Degree of protection - IP67 Cross-sectional area - 0.14 mm² / AWG 26 Temperature range from/to - -25 °C / 80 °C Mechanical operation - > 100 Mating cycles Weight (g) - 121.00 Customs tariff number - 85444290
