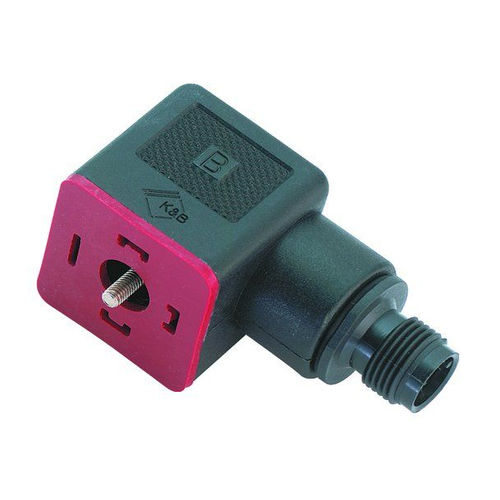

Electrical power supply connector 210/A seriesDINrectangularfemale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- DIN
- Shape
- rectangular
- Connection type
- female
- Size
- M12
- Material
- polyamide
- Product applications
- for solenoid valves
- Protection class
- IP65
- Other characteristics
- panel-mount
- Primary current
4 A
- Voltage
60 V
Description
Connector locking systemcentral bolt
Terminationplugable
Wire gauge (mm)0,34 mm²
Wire gauge (AWG)22
Degree of protectionIP65
Mechanical operation> 50 Mating cycles
Upper limit temperature85 °C
Lower limit temperature-30 °C
Rated impulse voltage800 V
Pollution degree3
Overvoltage categoryII
Insulating material groupII
Volume resistivity≤ 15 mΩ
Insulation resistance≥ 10¹⁰Ω
Contact materialCuSn (bronze), CuZn (brass)
Contact platingNi (nickel)
Contact body materialPA (UL 94 HB)
Customs tariff number85444290
Weight (g)26.19
