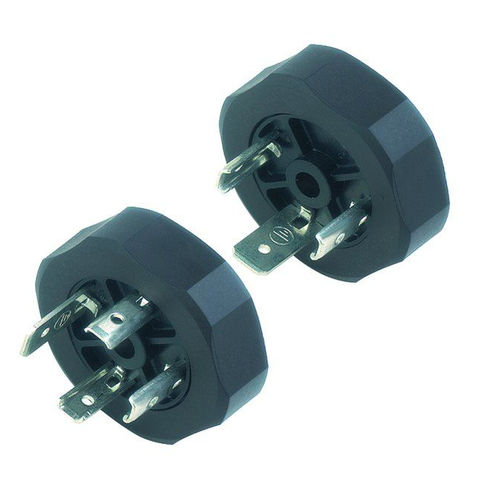

Electrical power supply connector 210/A seriesDINcircularmale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- DIN
- Shape
- circular
- Connection type
- male
- Size
- M27
- Material
- polyamide
- Product applications
- for solenoid valves
- Protection class
- IP65
- Other characteristics
- panel-mount
- Primary current
10 A
- Voltage
250 V
Description
Connector locking systemcentral bolt
Terminationsolder
Wire gauge (mm)1,00 mm²
Wire gauge (AWG)18
Degree of protectionIP65
Mechanical operation> 50 Mating cycles
Upper limit temperature100 °C
Lower limit temperature-20 °C
Rated impulse voltage4000 V
Pollution degree3
Overvoltage categoryIII
Insulating material groupIII
Volume resistivity≤ 15 mΩ
Contact materialCuZn (brass)
Contact platingSn (tin)
Contact body materialPA (UL 94 HB)
Approval 1VDE
Approval 2ESTI+
Customs tariff number85369010
Weight (g)8.724
