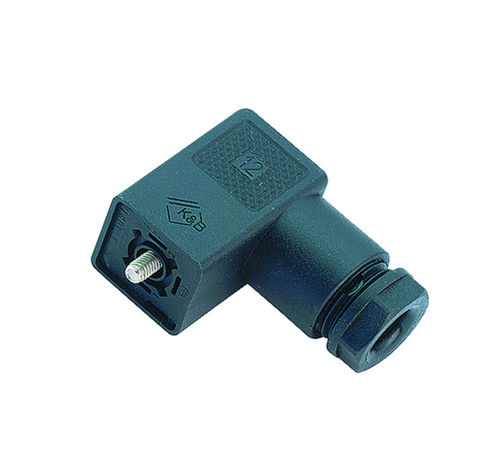

Electrical power supply connector 230/C seriesrectangularfemalescrew-locked
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- rectangular
- Connection type
- female, screw-locked
- Material
- polyamide
- Product applications
- for solenoid valves
- Protection class
- IP65
- Other characteristics
- panel-mount
- Primary current
6 A
- Voltage
250 V
Description
Connector locking systemcentral bolt
Terminationscrew clamp
Wire gauge (mm)max. 0,75 mm²
Wire gauge (AWG)max. 18
Cable outlet4,0 - 6,0 mm
Degree of protectionIP65
Mechanical operation> 50 Mating cycles
Upper limit temperature120 °C
Lower limit temperature-20 °C
Rated impulse voltage800 V
Pollution degree3
Overvoltage categoryIII
Insulating material groupIII
Volume resistivity≤ 15 mΩ
Insulation resistance≥ 10¹⁰Ω
Contact materialCuSn (bronze)
Contact platingNi (nickel)
Contact body materialPA (UL 94 HB)
Customs tariff number85369010
Weight (g)10.397
