- Detection - Measurement
- Temperature and Humidity Measurements
- In-line humidity and temperature sensor
- Franz Ludwig Gesellschaft für Mess- und Regeltechnik mbH
Wall-mount humidity and temperature sensor FL-WAPPin-linemicrowaveWiFi
Add to favorites
Compare this product
Characteristics
- Mounting
- wall-mount, in-line
- Technology
- microwave
- Output
- WiFi, analog
- Other characteristics
- high-precision, dual-channel
- Applications
- for indoor use, for test and process engineering, for bulk materials, for high-temperature applications, industrial, for the paper industry, for the food industry, for silos
- Measuring range (temperature)
Max.: 130 °C
(266 °F)
Description

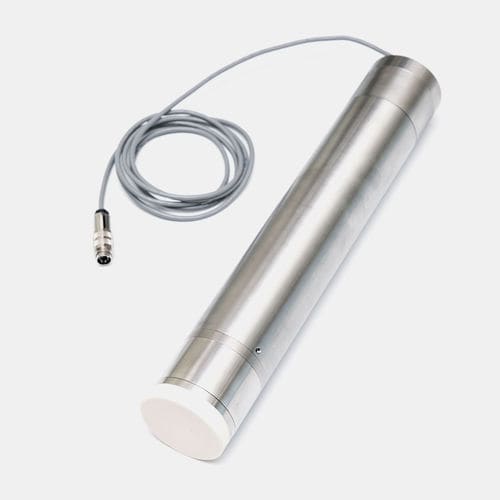

Moisture probe for bulk solids measurement at high process temperatures
Usage and applications
Possible use can be for example at the controlling of drying processes or at the moisture measurement of filter dusts in the chemical and pharmaceutical industry, power plants, foundries, construction materials industry and others.
Special Features
• - Use at high process temperatures (up to 130°C / 266°F)
• - Easy exchange of the measuring head on-site
• - Precise measurement by high sampling rate
• - High temperature stability of the measuring signal
• - Deep penetrating measurement
• - Universal application possibilities and easy installation
• - Wear resistant ceramic measuring surface
Technical Data
Power Supply
+24V DC (+/-25%)
Output (analog)
2 x 0-20mA
Power Consumption
1.5W
Frequency
433.92 MHz
Temperature Range
0-130 ° C
Connection Cable
5 x 0,25 mm² shielded (foil shield), L: 2 mtr., Miniature Round Connector 5pole male
Dimensions
Ø: 75 mm, Lenght: 450 mm
Weight
5kg
Cover
Stainless Steel IP 68
