Impact mill MPR 1007horizontalstonefor primary demolition
Add to favorites
Compare this product
Characteristics
- Technology
- impact
- Orientation
- horizontal
- Product applications
- stone
- Sector
- for primary demolition
- Rotational speed
Max.: 700 rpm
(4,398 rad.min-1)Min.: 500 rpm
(3,142 rad.min-1)- Output
Max.: 150 t/h
(92 lb/s)Min.: 50 t/h
(31 lb/s)- Motor power
200 kW
(271.92 hp)- Machine length
2,360 mm
(93 in)- Machine width
1,790 mm
(70 in)- Machine height
2,220 mm
(87 in)- Machine weight
10,000 kg
(22,046 lb)
Description

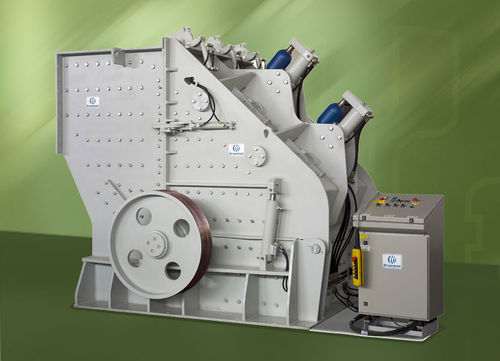

The crusher MPR1007 of Franzoi Metalmeccanica srl is a primary impact mill, designed and built for primary crushing of stones. made by adjustable mobile armors that allow, in addition to the normal functions that adjust the light between hammer and impact wall, to open and automatically reposition the impact wall in case a non-crushable body enters in the chamber. The crusher presents innovative technical solutions for the replacement of the hammers and caps, that allow the reduction of downtime required for its maintenance.
