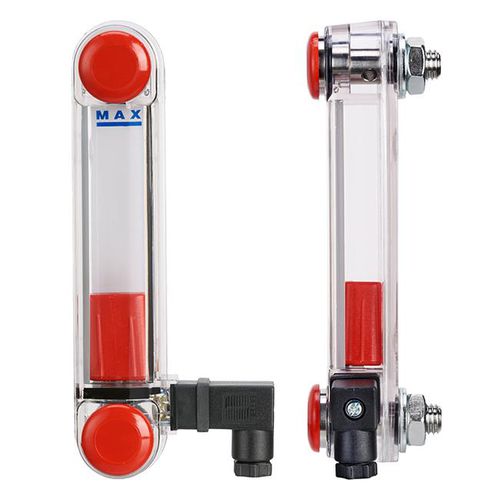

Liquids level indicator TL series

bypassfor tankwith thermostat

Visual/electrical levels Top Level series M10 or M12 Connections c/c distance 76 - 127 - 254 mm Possibility of thermostats/PT100 The visual level gauges TL series allow the liquid level to be checked in a clear and precise way at any time. PRINCIPLE OF OPERATION: The principle used is that of communicating vessels: the liquid goes through the level gauge by means of hollow screws, showing the user the exact point inside the tank. OPTIONS: - C/C distance 76, 127, 254 mm interchangeable with almost every level visual marketing - Body Transparent polyamide based TR 55 LX (Grilamid TM) or polycarbonate. CHEMICAL RESISTANCE: The polymer used is a compound based on polyamide 12. The Top Level electric visual level gauge offers visual signalling as well as a minimum level electric signal which can be N.O. or N.C. or EXCHANGE. The many advantages include: - just one purchase - just one installation - savings in costs and work - total safety: the electrical part is completely separate from the liquid and insulated with respect to the outside.
