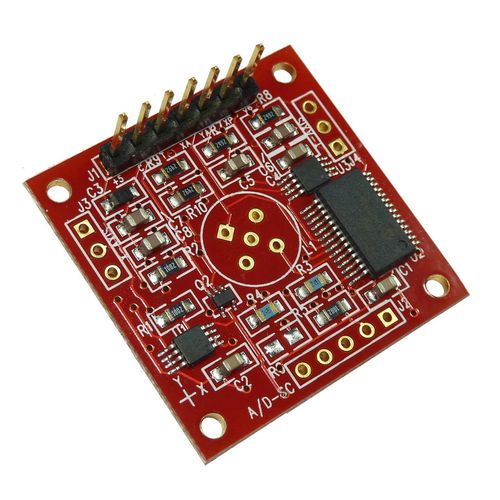

Analog signal conditioner 1-6200-007

for tilt sensors

All Fredericks electrolytic tilt sensors require a basic electrolytic tilt sensor circuit to generate a tilt angle output. These are often called signal conditioners, signal conditioning boards, or electronic tilt sensors. The 0717 series dual/two-axis tilt sensors can be mounted directly on these boards for a complete inclinometer solution. Other single/one axis 0703 series and glass tilt sensors must be mounted externally and connected with wires. This electrolytic tilt sensor circuit has analog 0 to 5 V DC and PWM outputs and mounting holes, making it simple to integrate into your own design. If you’d like to integrate the electrolytic tilt sensor circuit PCB into your own circuit design, The Fredericks Company can offer bills of material, Gerber files, and firmware source files along with engineering support for the integration. We have electrical/hardware, firmware, and mechanical design engineers on staff to assist with this process. Features and Benefits: Small size electronic tilt sensor Analog 0 to 5 V DC and PWM outputs for simple integration Mounting holes and connectors for simple integration 0717 series sensors can be mounted directly on the board 0703 series sensors can be mounted externally and connected with wires
