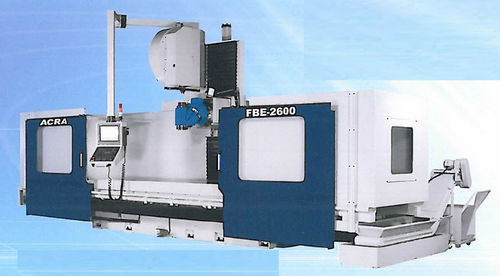

3-axis CNC milling machine FBE-2600

universalfixed-bed

Features: • Ideal for large molds, forging dies, and heavy work pieces up to 8000kg weight. • Machine five sides of workpiece with a single set-up. (with optional milling head & rotary table) • Steel cutting, with speeds up to 3500 rpm ; 25 kw #50 taper. Linear glass scales for all three axes. • Fully independent brushless digital AC servomotors. • Universal multi angle universal milling head with hydraulic tool clamping. • Hydraulic counterbalace on vertical movement. • Hardened & ground guideways with sliding surfaces coated with turcite anti-friction material. • Precision large diameter ball scerws on X-Y-Z, rigid mounted. • Highest quality Meehanite castings throughout.
