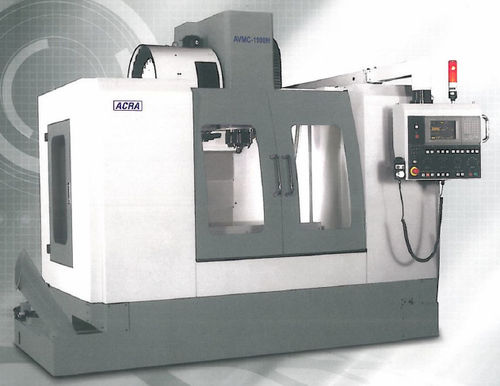

3-axis machining center AVMC-1100Hverticalhigh-speed
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Other characteristics
- high-speed
- X travel
1,100 mm
(43.31 in)- Y travel
610 mm
(24.02 in)- Z travel
610 mm
(24.02 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
Min.: 7.5 kW
(10.2 hp)Max.: 11 kW
(14.96 hp)
Description
RIGID MEEHANITE CASTING FRAMES WITHOUT DEFORMATIONg Z-axis moving balance by air cylinder without counter weight, no vibration, nonoise.| Z-axis servo motor with brake unit to protect the head down while power off onshort time.■Specal base design to separate lube-oil and chip water, this reduces thewater pollution.■More than 5500kg casting frame and a total machine weight up to 730Ckg.ensures rigidity du'ing heavy cutting and stability with the 30 meter rapid feed.
Catalogs
AVMC-1100H~3200
4 Pages
