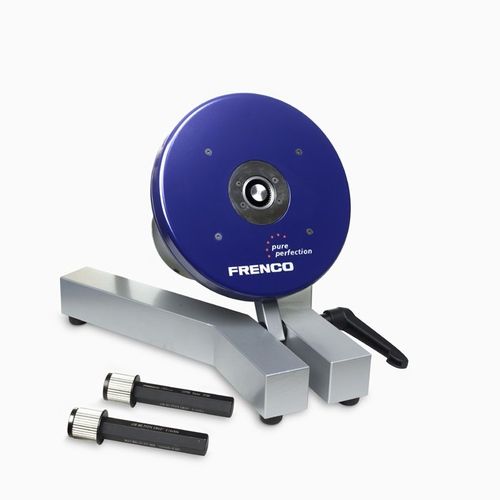

Size measuring instrument VM

for gears

Instruments with Guiding Profile AVM nx2, IVM nx2 and Tripod IVM 3x1 Available for internal and external splines The guiding profile is matched to that of the workpiece to be inspected The dimension over balls is inspected within seconds at multiple positions at the same time Instead of measuring balls, radius discs are used to minimise wear The measuring electronics allows the evaluation of the diametral size along the tooth width Crowning and conicity are recorded Evaluation via FRENCO Software LdynPro Horizontal Sliding Bench for AVM nx2 Instruments Easier handling for long shafts Fixed measuring plane within the longitudinal course Type-1 study: Repeatability for DoP averaged ≤ 1.3 μm Type-2 study: Tmin for DoP averaged = 18 µm (R&R ≤ 20%)
