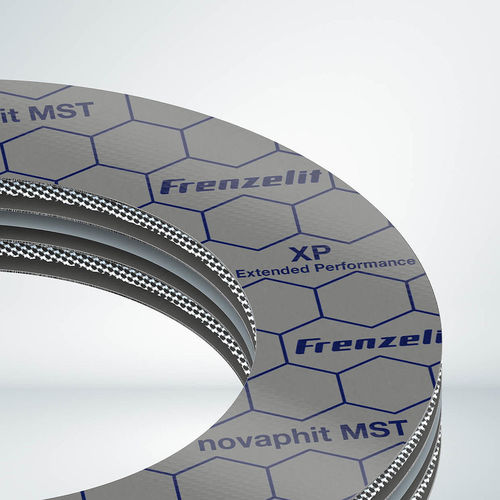

Graphite gasket sheet novaphit® MST

metalflangebar

High-performance gasket with multilayer structure novaphit® MST stands for the highest performance. This material combines highly pure, premium-quality graphite foils with multiple layers of perfectly coordinated expanded metal and flat metal inserts (up to eight graphite layers and seven inserts depending on the material thickness). This material structure creates unique mechanical properties with the lowest leakage values and guarantees excellent performance in use. novaphit® MST’s multilayer concept provides optimum handling and allows extremely high pressure and temperature loads – even under changing load conditions. Thanks to its sophisticated layered structure, novaphit® MST can withstand above-average surface pressures and even extreme pressure loads (internal pressure up to 250 bar). novaphit® MST is extremely dimensionally stable and can be easily processed using all standard methods – even manually on site. Its outstanding adaptability means that novaphit® MST forgives installation errors and even compensates for damaged flange surfaces. novaphit® MST meets the most stringent requirements with regard to preventing diffuse emissions and is considered “high quality” in terms of TA Luft. Thanks to its superior performance, novaphit® MST makes it possible to produce gasket connections in compliance with the strict criteria of TA Luft and VDI 2290. It goes without saying that all required gasket parameters are available according to DIN EN 13555. This makes useful, real-world designs possible according to DIN EN 1591-1.
