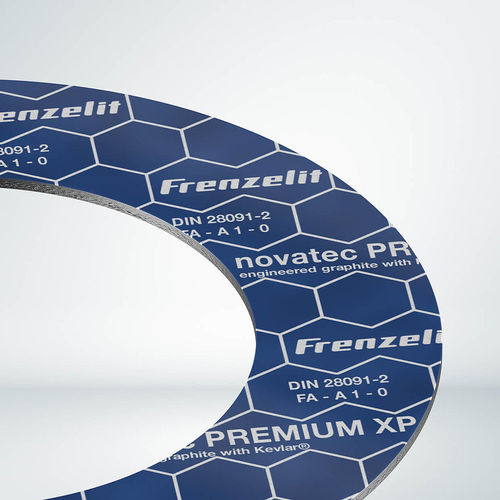

Metal gasket sheet novatec® PREMIUM XP
graphitefiber

metal gasket sheet
metal gasket sheet
metal gasket sheet
metal gasket sheet
metal gasket sheet
Add to favorites
Compare this product


Characteristics

Material
graphite, metal
Other characteristics
fiber
Temperature limit

250 °C
(482 °F)

Description

The link between fiber and graphite novatec® brings two worlds together: The world of conventional fiber gaskets and the world of graphite gaskets. Their very high graphite content makes novatec® gaskets superior to conventional fiber gaskets due to the following properties: Higher temperature resistance Better chemical resistance novatec® is ideal for higher requirements that conventional fiber gaskets cannot meet or no longer reliably satisfy. Thanks to their material structure, novatec® products have sufficient inherent strength so that a metal insert is not necessary for reinforcement. This makes them suitable for use with a variety of media. The next generation of fiber-reinforced graphite gaskets novatec® PREMIUM XP is the third generation of fiber­reinforced graphite gasket developed by Frenzelit. novatec® PREMIUM XP is superior to conventional fiber gaskets due to its extremely high graphite content, which makes it extraordinarily resistant with excellent residual stress. Sophisticated process technology is used in the production of ® PREMIUM XP. In addition, the graphite morphology has been optimized as the structure of the graphite also greatly influences the sealing performance. This targeted adjustment paired with the formula’s high density enables novatec® PREMIUM XP to achieve sealing category L0,01 in typical applications and thus meet the strict criteria of TA Luft and VDI 2290. DIN EN 1591-1 compliant gasket system designs are therefore no problem with novatec® PREMIUM XP. novatec® PREMIUM XP closes the gap between conventional fiber and graphite gaskets and offers a true alternative for applications
