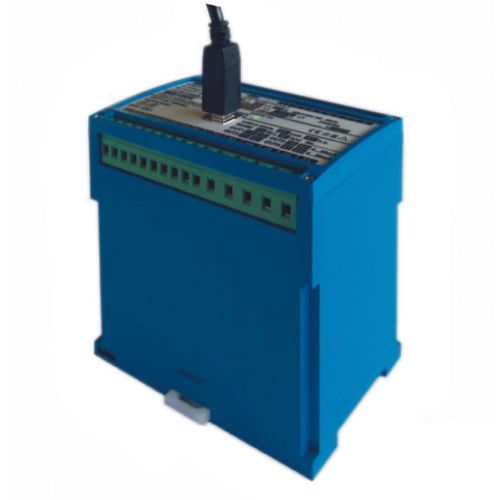

DIN rail mounted measurement transducer MCOUP series

programmablemodularuniversal

MCOUP1 PROGRAMMABLE UNIVERSAL transducer with 1 output Fully field programmable via standard isolated USB interface and simple configuration software. Suitable for use in single-phase or three-phase three-wire or four-wire systems with balanced or unbalanced load, even in the presence of distorted waveforms. It can be optionally equipped with an RS485 serial interface with ModBus protocol and with a Photo-Mos output that can be programmed as an alarm or as a re-transmission of the counted energy. Programmability includes: - Type of iwiring connection - Input nominal value with automatic gain switching - CT and VT ratios For each output independently: - Output type (V or mA) - Output nominal value - Measurement to be associated with the output, selected from those available - Output start and full scale values Free software programming functionality: - Diagram display of the selected insertion - Display of all measured quantities - Print summary label of set data - Copy/paste setting parameters for programming several converters
