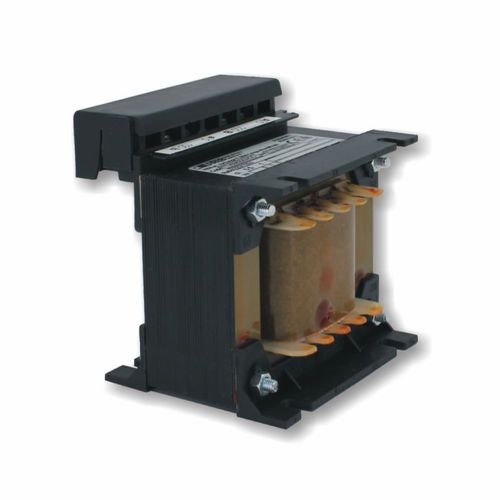

Instrument transformer TTV seriesencapsulatedprotectionfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- instrument
- Configuration
- encapsulated
- Applications
- for industrial applications, protection
- Electrical characteristics
- single-phase
- Mounting
- wall-mount
- Norms
- IEC
- Output power kVA
Max.: 0.2 kVA
(0.271924 hp)Min.: 0 kVA
(0 hp)- Primary voltage
Max.: 1,200 V
Min.: 100 V
- Secondary voltage
100 V, 110 V
- Frequency
Max.: 60 Hz
Min.: 50 Hz
Description
DESCRIPTION
Measuring VT's cl.0.5
DETAILS
QUICK DELIVERY
Technical data
self estinguishing
thermoplastic material UL94-V0
operating frequency 50÷60 Hz
insulation reference voltage 0,72 kV
test voltage 3 kV x 1’ 50 Hz
insulation classe E
protection degree IP20
rated voltage factor 1,2 / continuous
thermal power 6 volte nominale
6 times of rated burden
operating temperature -25 +50 °C
storage temperature -40 +80 °C
manufactured according to IEC/EN 61869-1
IEC/EN 61869-3
primary and secondary terminals integrati/integrated 6 mm²
