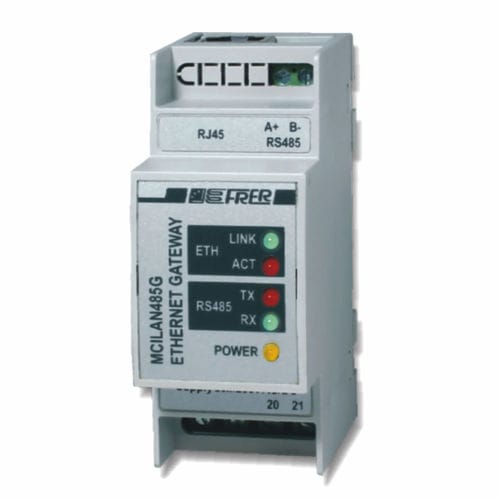

Communication gateway MCILAN485G

TCPEthernetModbus

Ethernet interface with MODBUS protocol The FRER ETHERNET gateway allows up to 32 FRER devices equipped with an RS485 interface to be connected to an Ethernet network (using a single IP address), providing the user with two possible modes of operation (even simultaneously): 1. Conversion from Modbus/TCP protocol to Modbus RTU (for max. 3 clients simultaneously) 2. Integrated web-server In addition, through appropriate settings of the network router, the FRER gateway can be made accessible via the Internet, allowing the user to view and record the measurements made by the instruments with a simple browser and from anywhere in the world. The FRER mini WEB-SERVER contained in it, which can be consulted using any Internet browser, allows both the displaying and recording, with automatic or manual start, of 450 instantaneous measurements simultaneously, which can then be downloaded in .csv format.
