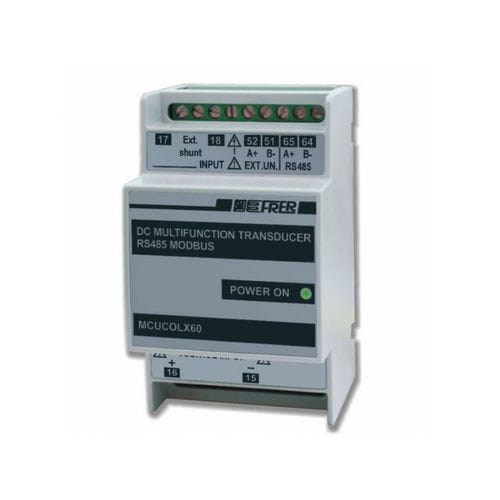

DIN rail power transducer MCUC0L

DC multifunction transducer with RS485 output Multifunction transducer for DC systems. The voltage input is directly wired to the line, while the input proportional to the current is derived from shunts. It allows the transmission via a communication data interface (RS485 with ModBus RTU protocol as standard) of all the main characteristic variables of a DC network, including energy and Ah counting, greatly reducing the complexity and the costs of installation. In addition, one output programmable as alarm or pulse output for energy retransmission are available as option. This multifunction transducer is supplied with a software to set required parameters. It allows to easily set input values (Shunt ratio), system parameters (such as sampling time), serial communication parameters, digital alarm/pulse output and the analogue output features.
