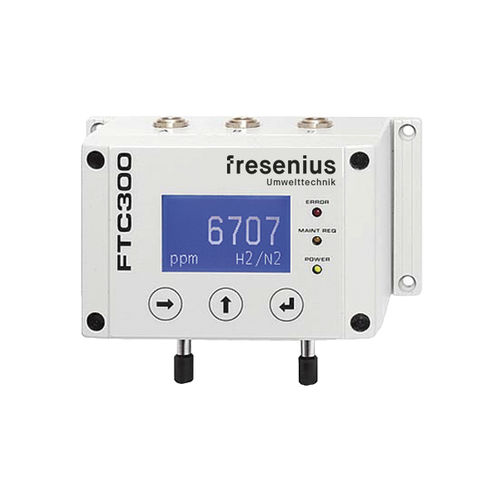

Helium analyzer FTC300

hydrogenmultigasmonitoring

Detector for measuring quantitative gas compositions H2 measurement in biogas as well as in furnaces of the metal industry / block-type thermal power stations / turbogenerators H2 or N2 measurement in elemental analysis Helium recovery monitoring Helium measurement with moisture compensation in airships Monitoring in air separation plants Control, monitoring and quality control of gas mixtures and pure gases … and other fields Technical data W 145 x H 80 x D 85 mm Interface: RS232 Power supply: 18 V-36 V DC /700 mA Display: LCD display Operation via 3 buttons Linearity: < 1 % of the measuring range Warm-up time: approx. 20 minutes (for measurements in the smaller measuring range approx. 1 h) Flow rate: 10 l/h – 150 l/h T90 time: <1 sec at flow rates beyond 60 l/h and disabled electronic averaging Sample gas pressure: 200 hPa (0.2 bar) to 200 kPa (20 bar) Sample gas temperature: <60 °C Signal noise: <10 ppm H2 in N2 Measurement technology Works according to the thermal conductivity principle Classic two-point calibration or simple one-point calibration Compensation of the cross-sensitivity and susceptibility to interference upon input of an external signal Multi gas mode for the sequential measurement of 16 binary gas mixtures Electrically isolated 0/4-20 mA output with free determination of the associated gas concentrations Precise linearization for binary gas mixtures H2, He, CO2, CH4 in N2 or Ar and N2 in Ar or Ar and N2 in Ar in a read-only memory
