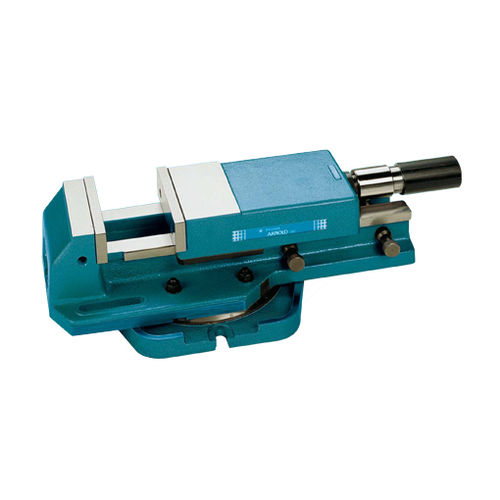

Machine tool vise 010 010 ARNOLD CLASSIC series

hydraulichorizontalrotary

High pressure ARNOLD CLASSIC vices achieve a clamping force of up to 80 kN. - Accuracy of 0.01 mm in clamping repeatability. - Monoblock design avoids deformations due to high pressure and offers great rigidity and robustness. - The force applied by the high pressure spindle is transmitted to the work-piece right in the centre of the clamping jaw. - Large aperture up to 375 mm and 845 mm if the body is in two parts. - Clamping force is 25/40/50/80 kN, depending on the model. - ARNOLD CLASSIC spindles can be used independently from the vice as a power clamping element in a workholding set up. - Fitted with a high pressure hydraulic intensifier which does not require any external supply. - Power regulator optional. - Two part straight vice option available.
