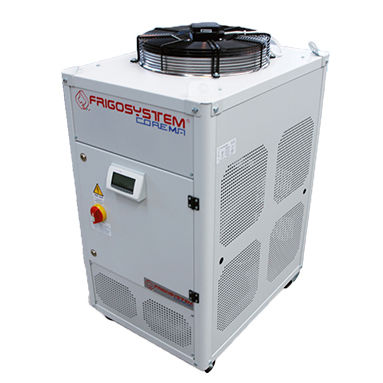

Water chiller RACA-BT

for the chemical industryfor the pharmaceutical industrylow-temperature

Low water temperature chillers suitable for cooling anti-freezing fluid solutions up to -30°C. Monobloc units equipped with all special temperature devices. The most common applications for the RACA/C-BT series are in the plastic processing industry, for instance in the metallization process (plastic film and aluminium coupling) for a quick cooling of the metallization coil. These chillers are used in the production of detergents and soap too: the low temperature of the fluid improves the brand impression, the resolution and the polishing. Other applications: chemical, pharmaceutics, contact lens. RACA/C-BT are either air or water cooled. Low temperature range of the fluid between +5 and -30°C (41 to -22°F) All BT chillers are tested in Frigosystem for 10 hours and submitted to the real load conditions during the quality and working test. Removable panels for quick maintenance access IP44 control box Water tank level indicator Threaded couplings for prompt connection to the user’s plant Swivel wheels for easy positioning Large surface air condenser in copper tubes and aluminium fins, complete with fans Dry expansion evaporator Top brand hermetic refrigerant compressor Stainless steel water tank Centrifugal pump complete with by-pass Antifreezing safety probe Digital microprocessor control for set and actual temperatures and safety alarms Differential pressure switches controlling the minimum and maximum pressure of the unit
