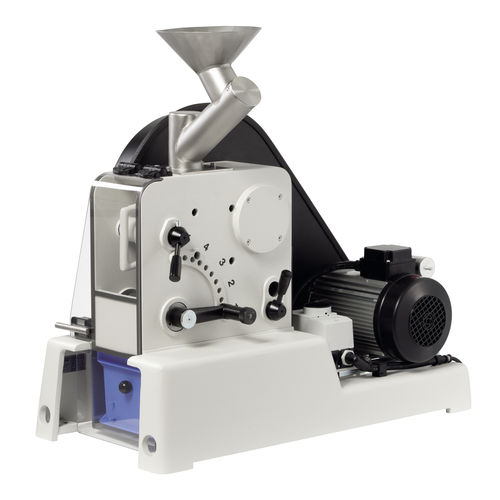

Jaw crusher PULVERISETTE 1 classic line

stationaryfor mineral materialcoal

The compact pre-crusher The compact FRITSCH Jaw Crusher PULVERISETTE 1 classic line is the ideal instrument for fast and effective pre-crushing of hard and very hard brittle materials - batchwise or continuous and even ferrous alloys are no problem for this instrument! Model II of the FRITSCH Jaw Crusher PULVERISETTE 1 classic line is ideal for a maximum feed size of 95 mm and a maximum continuous throughput of up to 200 kg/h depending on the material and gap adjustment. Powerful pre-crushing The powerful comminution of the sample takes place in the Jaw Crusher under high pressure between one fixed and one movable crushing jaw in an enclosed grinding chamber. The final fineness is easily set from the outside with the 10-stage adjustable gap between the crushing jaws. The ground sample automatically falls downward – into a drawer for batchwise comminution or via a chute into a larger collection container for continuous operation or directly into a FRITSCH Disk Mill PULVERISETTE 13 classic line for further comminution. FEATURES • Extremely fast and easy cleaning • Crushing jaws removable with just two hand motions • Quickly and easily filled • Safe and dust-free operation • Plexiglas cover for optical observation of the grinding process • Final fineness 1-15 mm
