Semi-automatic stencil printer printALL210XL

solder pasteSMT

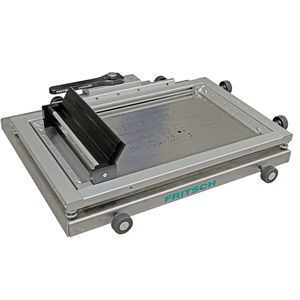

The semi-automatic stenil printer printALL210XL is the largest of the range. It was espcially constructed for the handling of oversized PCBs. FRITSCH argues about a maximum PCB size up to 1240 x 600 mm. Conditioned by the size the integration of a vacuum table is possible and a safe and smooth intake of PCBs and foils is guaranted. The flexible PCB intake enables the stencil printer to be set up within only a few minutes. The adaptions to a different frame format can be made without tools. The optional test print frame reduces the minmial set up time once again. Common, sturdy aluminium frames and other usual quick change systems such as Stencilman, VectorGuardTM and Zelflex or the like are used without the need for further adaptions. That enables the printing of the smallest of PCBs up to a maximum printing surface of 560 x 460 mm. The stencil printer has a double squeegee for flawless paste printing in both directions. The paste is applied within the double squeegee and is thus appliable in both directions.The contact pressure of the squeegee can be set by a screw. The angel of the squeegee is adjustable from 45° up to 90°. The microprocessor controller controls the lowering of the motoric squeegee, controls the motor-driven print and makes sure the print is even and reproducible. After printing, the table is automatically lowered over the pneumatic cyclinder in a parallel position and the printer can be opened. All processor-controlled functions of the printer are handled by an optimized intuitive Touch Display. There is also the possibility to save product-specific programs. So the production can start only by choosing the accordant program.
