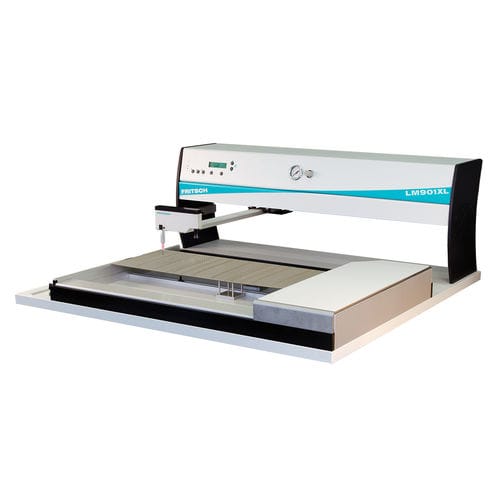

Manual pick-and-place system LM901XL

for single- or double-sided PCBSMT

The LM901XL is 200 mm larger than the LM901 in both the X-direction and the Y-direction. With its extended assembly area, it is possible to process circuit boards up to a size of 750 x 510 mm. Like the LM901, it also realizes the entire dispensing and placement process from applying the solder paste or adhesive to assembling chip, fine-pitch and special components. The universal circuit board holder retains single- and double-sided boards safely using adjustable, elastic holding fingers (see picture above). Large circuit boards can be handled on demand. If you need a custom circuit board holder, our developement department is pleased to realize this special task for you. The unequalled guiding system of the assembly head results in comfortable and fatigue-free daily work. All of the control elements are arranged logically and ergonomically, which assists the user in the best possible way. A relocatable hand-rest is already included in the standard version of the machines. The assembly head is equipped with a patented constant-force trapezoidal spring. The spring tension is distributed equally over the total range of the Z-axis. The whole assembly head is maintenance-free. To assemble prototypes and small series more quickly, a dispenser can be mounted to the assembly head. It can be used to dispense solder paste or glue on the circuit board. The X/Y locking device (fig.) ensures precision mounting. Individual movement axes can be locked. An automatic function independently locks the X and Y axes when the components are lowered or when placing a dispenser dot. This makes it particularly easy to place Melfs.
