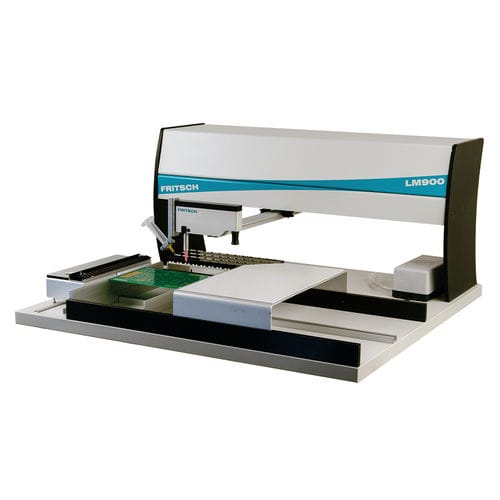

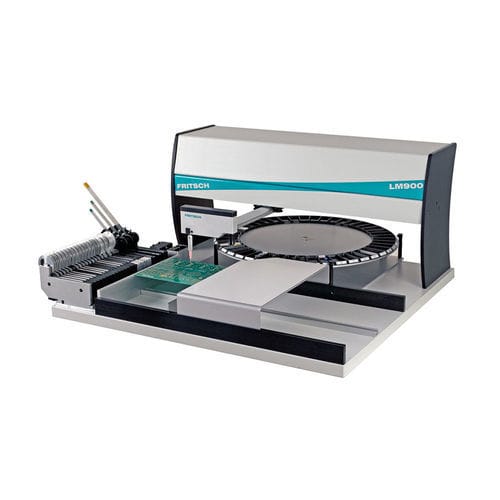

Manual pick-and-place system LM900

SMT

The LM900 is the basic system of our manual manipulator series. It can mainly be used for prototyping and small-series production, as well as post-placing single components. Due to smooth-running assembly guides and a handrest, fatiguefree work is accomplished. The LM900 ensures a cost-efficient entry into manual SMD assembly. Thus the LM900 together with the LM901 is one of the best-selling Pick&Place systems worldwide. The universal circuit board holder retains single- and double-sided boards safely using adjustable, elastic holding fingers (see picture above). Large circuit boards can be handled on demand. If you need a custom circuit board holder, our developement department is pleased to realize this special task for you. The unequalled guiding system of the assembly head results in comfortable and fatigue-free daily work. All of the control elements are arranged logically and ergonomically, which assists the user in the best possible way. A relocatable hand-rest is already included in the standard version of the machines. The assembly head is equipped with a patented constant-force trapezoidal spring. The spring tension is distributed equally over the total range of the Z-axis. The whole assembly head is maintenance-free. With holder for holding a 5/10 cc syringe it can also be used for dispensing by means of an external control (not included in the scope of delivery). With a camera attached to the assembly head, you can view the whole Pick&Place process - magnified on a monitor. Thus even the smallest parts like 0201 and 0402 can be placed exactly.
