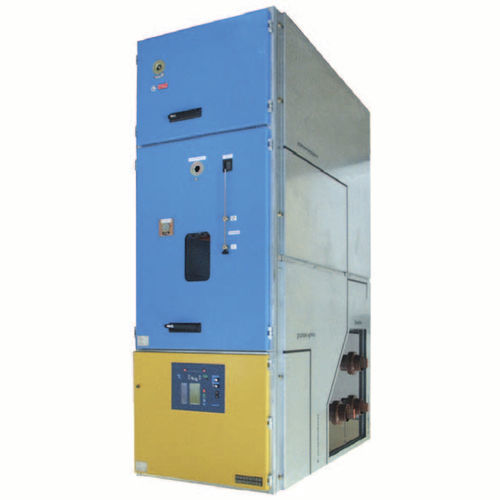

Medium-voltage switchgear E3K

short-circuitair-insulatedcircuit breaker

•Disconnector free, withdrawable design with compartment design Type E2K or E3K • Metal-encapsulated and air-insulated • High operating safety based on sturdy, patented 2-spindle design of withdrawable cassette • Maximum supply reliability through steel sheet partition with high short-circuit strength between the chambers • Maximum operating safety through automatically closing or opening metal shutter in front of the contacts • All switching operations including the moving of the circuit-breaker withdrawable unit into isolated position are carried out behind closed panel doors in order to guarantee maximum personal protection. • Doors with patented closing mechanism • Separate pressure relief flaps for each chamber at the top • Protection up to IP4X • Weight when fully equipped approx. 1200 kg (acc. to design)
