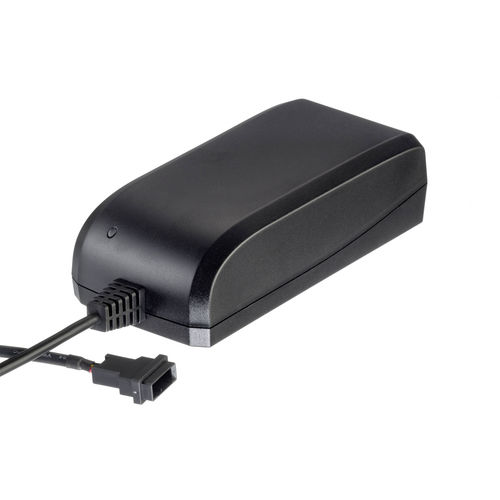

Portable battery charger FOX90- CLi-ion
Add to favorites
Compare this product
Characteristics
- Configuration
- portable
- Battery type
- Li-ion
- Voltage
29.4 V
- Amperage
3,000 mA
Description
Chargers for Lithium- Ion systems. All products conform to IEC 60335.
Additional information
Input voltage: 100-240 V
Frequency: 50-60 Hz
leakage current: ≤100 µA
Reverse current: 50 µA
Output voltage tolerance: ±1
Start-up-time: ≤5 sec.
Standby losses: ≤0,5 87,5%
Efficiency (typ. full load): ≥80%
MTBF: 200000
Working temperature: 0-40°C
Humidity: 10-85%
Storage temperature
: -20-70°C
Operating Altitude: 2000 m
Input current: 1850-870 mA
Standard: EN61558-1, EN61558-2-6, EN60335-1, EN60335-2-29
Protection Class: II
Dimension: 179x86x50,5 mm
Weight: 507 g
AC Input: 2 pole, IEC60320-C8
DC output: 3 pole, JST plug
color: black
Spec.0 cover sheet FW-Type: FW8100M/07/4.2/3.0
Chemistry: Li-Ion
