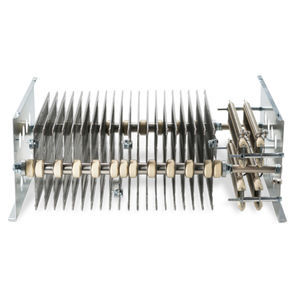

Wire-wound resistor FEY 31 series

high-powerstainless steel-housed

Steel-grid fixed resistor block in protection degree IP 00 for high energy absorption capacity, for integration into switch cabinets, devices or ventilation ducts; connection directly at the resistor. special features • for high energy absorption capacity • for high continuous currents • integration and combinations possible • for integration into switch cabinet • continuous dissipation • energy absorption capacity with dT = 300 K, up to 7,8 MWs example of use • filter resistor • FRT/LVRT resistor • crowbar resistor • load resistor • charge/discharge resistor • current limiting resistor Options • setup for higher voltage upon request • with temperature switch (TS) with fast-on connections 6,3x0,8: type then FEYQ 31… • in compact design with less space needed (for short-time high energy dissipation): type FEP 31…
