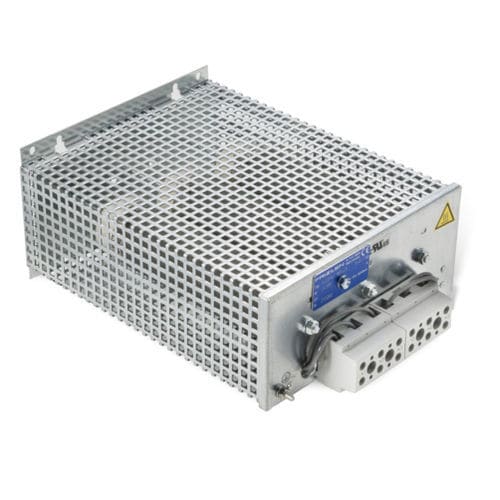

Cemented wirewound tubular fixed resistor in one-tube design, degree of protection IP20, in perforated steel sheet enclosure, mounting vertical to mounting surface, connections optionally at terminals or at screw or fast-on clips at the resistor. For integration into switch cabinets.
special features
• protected against access to hazardous parts
• only small fixing space needed
• vertical mounting on mounting plate
• two - or three-phase version, also available with star point in the unit, i.e. connections at 2, 3, 4 or 6 terminals
• terminals protected against access to hazardous parts according to BGV A2
example of use
This type is used for limiting the switchon current and for short – circuit braking in a three-phase version. Also as filter, braking or series resistor in a one- or two-phase version.
It is perfectly suited for integration into switch cabinets.
Options
• Temperature switch available only from tube size D = 24 mm on
Please note: There will not be a disconnection of the resistor, signal is to be used by customer
• Type designation would be: FZ.PQ ...
• Contact rating of the signal contact:
- 2 A / 24 VDC (DC11)
- 2 A / 230 VAC (AC11)
• UL recognition available
You will find suggestions for the dimensioning of the resistor for continuous and short term load in the related data sheet
