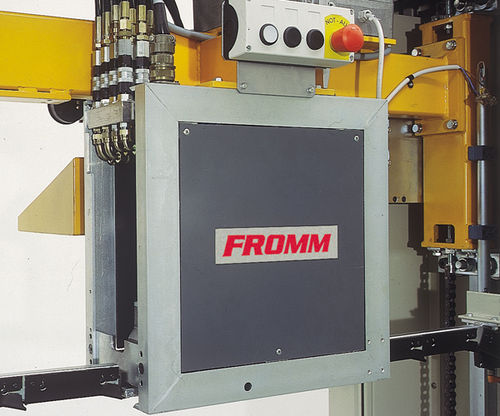

Steel strap strapping head M100

seallesshydraulicmodular

FROMM strapping heads have been designed for automatic heavy duty industrial strapping installations. For use in a wide range of industrial applications our strapping heads can be installed at the top, at the side or in a horizontal plane of a fully automatic strapping machine. Strap qualities • Uniflex up to 850 N/mm2 • Ultraflex up to 1100 N/mm2 Weight • 67 kg Features: • High strap tension up to 9000N (2025lbs) adjustable • High seal efficiency up to 80% • Tensioning system with integrated floating • Sealless strap joint • Available with MicroLock™ system • Modular feeding and sealing system • Low wear on punching tools • Hydraulically powered and controlled • Easy integration • Fast exchange of cutting and punching tools • Most reliable strapping head available in the world Options: • Dispenser for jumbo-coils • Sword • Machine with travel facility • Integrated bunker feed system • Edge protection system • Vertical press systems up to 20 KN press force • Conveying systems
