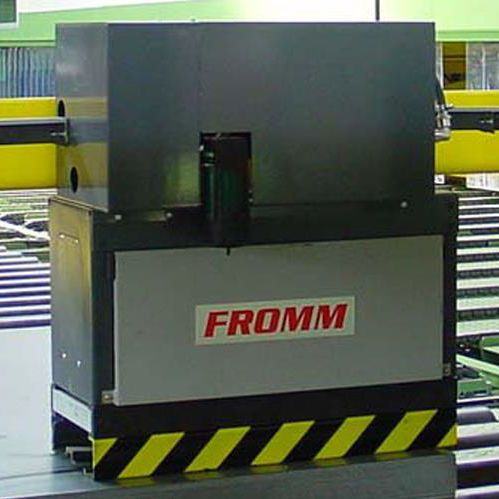

Steel strap strapping head MH20 series

seallessmodularpneumatic

FROMM strapping heads have been designed for automatic heavy duty industrial strapping installations. For use in a wide range of industrial applications our strapping heads can be installed at the top, at the side or in a horizontal plane of a fully automatic strapping machine. Strap qualities • Uniflex up to 850 N/mm2 • Ultraflex up to 1100 N/mm2 Strapping dimensions • 19.0 - 32.0 x 0.63 - 1.00 mm Weight • 160 kg Features: • High strap tension up to 18000N (4050lbs) adjustable • Seal efficiency up to 80% • Linear strap tensioning system • Both strap ends tensioned simultaneously • Sealless strap joint with MicroLock secured seal • Modular feeding and sealing system • Low wear on punching tools • Pneumatically powered • Easy integration • Fast exchange of cutting and punching tools • Strapping of small package sizes Options: • Dispenser for jumbo-coils • Sword • Machine with travel facility • Integrated bunker feed system • Edge protection system • Vertical press systems up to 20 KN press force • Conveying systems
