Water filter

beltfineprocess

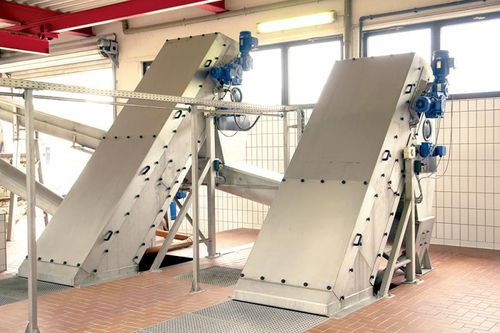

The FSM filterscreen was developed to deal with particular problems associated with sewage pre-treatment plant. Following successful trials, the first installation was equipped with this product in 1987. Parallel to the increasing demands of users, FSM introduced modifications to the basic design. These have resulted in an optimum product for the preliminary treatment of waste water-providing high performance coupled with low operating costs. Thus, cleaning by brushes has been continually developed so as to keep the demand for service water to a minimum. Over 1500 machines have been supplied worldwide. The Filterscreen is a fine screen with high screenings capture rate and use in water and waste water treatment. Functional principle: The waste water flows through perforated filter elements made of stainless steel, while contaminants are held back. Solid matter is picked up directly at the bottom of the channel without necessarily requiring a base step. The filter elements form a continuous filter belt which is cleaned by a brush at the upper deflection point. The cleaning process is assisted by a series of jets working in proportion to the screenings load. Tines located on every 5th screening element prevent build-up of rolling matter in front of the screen and ensure that large matter is removed. The sheet steel side plates of the filter elements slide on plastic rails on the screen frame, thus forming a seal and preventing screenings from being washed past the screen at the sides.
