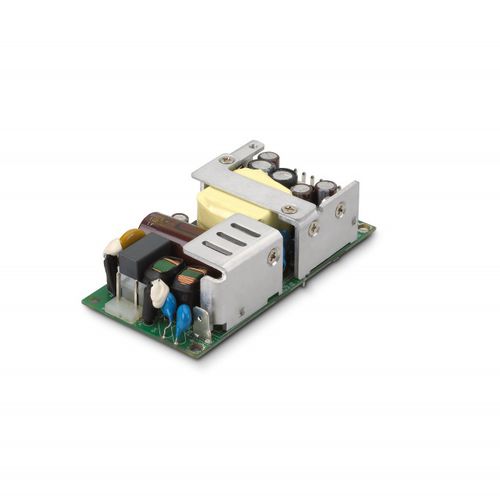

AC/DC power supply FSP060-1K20M1
single-outputwith short-circuit protectionfor printed circuit boards

AC/DC power supply - FSP060-1K20M1 - FSP Technology Inc. - single-output / with short-circuit protection / for printed circuit boards
AC/DC power supply - FSP060-1K20M1 - FSP Technology Inc. - single-output / with short-circuit protection / for printed circuit boards
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Protection
with short-circuit protection
Mounting
for printed circuit boards
Applications
for medical applications
Other characteristics
safety, RoHS compliant
Input voltage

Min.: 90 V

Max.: 264 V

Output voltage

12 V

Current

5 A

Power

60 W

Description

Feature • Certified Medical Safety IEC 60601-1 • Input Voltage Range 90-264 VAC • Low Leakage Current • Over Voltage/ Over Current/ Short Circuit Protections • Compliant with RoHS requirement Introduction This product is Class I open frame, PCB constructed in a package of 2 × 4 × 1.18 inch, which output voltage is 12V and maximum output power is 60W. The unit approved medical safety and certified EMC medical standard, and is designed for medical applications.
