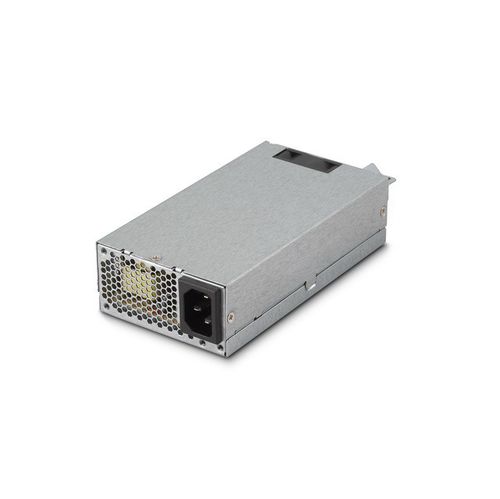

Switching power supply FSP300-20FGGBC
with short-circuit protectionserverworkstation

Add to favorites

Compare this product

Characteristics

Technology

switching

Protection

with short-circuit protection

Applications

server, workstation, for telecommunications equipment, for automation, for industrial applications

Other characteristics

with power factor correction (PFC), low-noise level

Input voltage

Max.: 264 V

Min.: 90 V

Output voltage

5 V, 12 V

Current

Max.: 24 A

Min.: 0 A

Power

300 W

Description

Feature - Low Ripple & Noise - Output over voltage protection - Short circuit protection on all outputs - Resettable power shut down - INTERNAL 4 cm fan - 100% burn-in under high ambient temperature(50℃) - Vacuum-impregnated transformer - MTBF:100K hours at 25℃ - 100% Hi-pot tested - Line input fuse protection Introduction FSP300-20FGGBC is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 300 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
