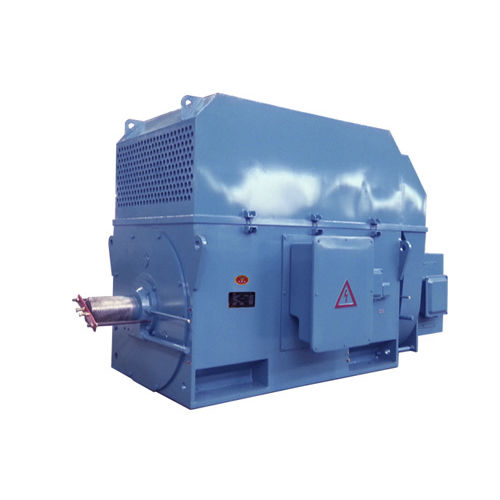

Induction motor YR series

wound rotorsquirrel cagesmall

YR, YRKS, YRKK Series High Voltage Motor Rate power: 400~5600kW Rate voltage: 3kV、6kV、10kV Frame size: 710~800 Pole: 4~12p Introduction This series motors with box type steel structure, can be observed its interior after removing the cooler or protective cover, and esay to be installed and maintained; Wound rotor is installed with slip ring structure; Insulation class F stator made by VPI process, ensure the reliability of insulation, moisture-proof and shock resistance; Temperature senor for stator and bearing, non-stop oil filling and exit pipe, improve the protection ability and operation efficiency of the motors. When the power is more than 2000kW, according to the requirement of customer, another terminal box can be installed to pick up the neutral point of winding Features This series motor can be applied to the requirements as follows: 1. The lager starting torque; 2. Power capacity is not enough to start a squirrel cage motor; 3. Long start time or start more frequently; 4. Adjust speed in a small range.
