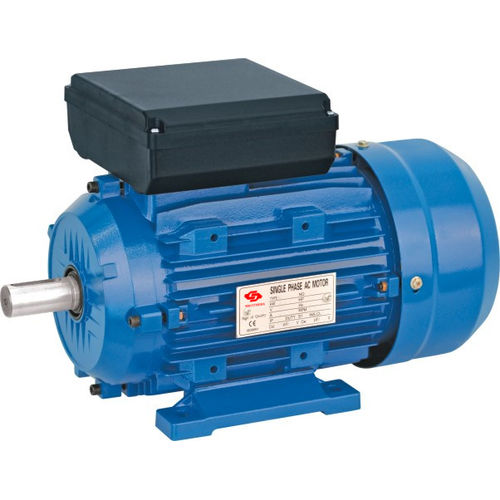

Single-phase motor ML seriesasynchronousIP55dust-proof
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- asynchronous
- Protection class
- IP55, dust-proof
- Configuration
- capacitor, with start capacitor, aluminum frame
- Applications
- for pump, for medical equipment, for air compressors, for refrigerators
- Power
Max.: 2.2 kW
(2.991 hp)Min.: 0.18 kW
(0.245 hp)- Rotational speed
1,500 rpm, 3,000 rpm
(9,424.78 rad.min-1, 18,849.56 rad.min-1)
Description
ML Series Alumium housing single phase two value capacitor asynchronous motors, It can be used on air compressor, pump, refrigeration, medical apparatus and instruments, and many other samll size machines.
Introduction
ML series single phase motor is with dual capacitors. Frame: H71-100, Power: 60W-5.5Kw, ML series single phase motor is with start capacitor. Frame: H56-132, power: 0.18-2.2kw MY series single phase motor is with run capacitor. Frame: H63-90, Power:0.18-1.5kw ML and MC series are with centrifugal switches, and widely used in high start torque equipment. Such as air compressor. MY series are widely used in low start torque equipment, such as fan and water pumps.
Features
F class, B temperature rise,IP55
Aluminum frame with removable feet
Outline dimensions according to IEC standard.
S1 Work duty
Dust-proof, Vermin and corrosion resistance.
High performance, low vibration, safety and reliable
