Single-phase motor JY seriesasynchronous220 Vcapacitor
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- asynchronous
- Voltage
- 220 V
- Configuration
- capacitor, small
- Power
Max.: 0.75 kW
(1.02 hp)Min.: 0.18 kW
(0.245 hp)- Rotational speed
1,400 rpm, 2,800 rpm
(8,796.46 rad.min-1, 17,592.92 rad.min-1)
Description

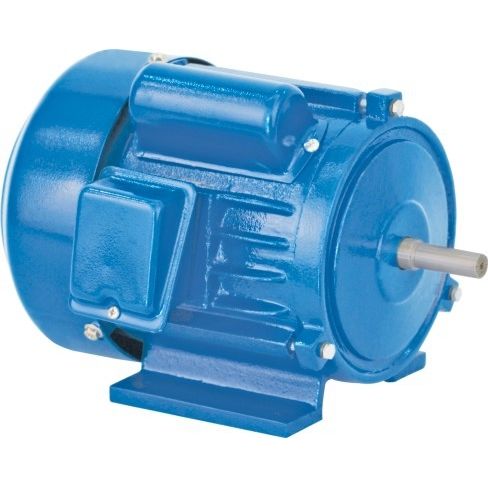

JY SERIES Single-phase capacitor start motor
Ambient temperature: -15℃≤~≤40℃
Altitude: not exceed 1000m
Rated voltage: ±5%
Introduction
JY Series Single-phase capacitor start motor. These motors are suitable for the situation that require the higher starting torque and the limited starting current. The motors can be used on driving all kinds of small machine that need full load starting. The motors of this series are totally enclosed and fan cooled, possess No.09, No.1 and No.2 three frame size and with the starting capacitor on the top of the motor
