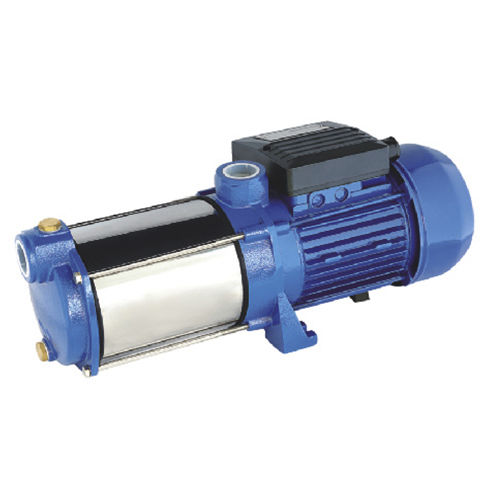

Centrifugal pump HMPwaterself-primingindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Priming
- self-priming
- Domain
- industrial
- Applications
- work, irrigation
- Material
- stainless steel, ceramic
- Other characteristics
- multi-stage, mechanical, seal
- Flow
Max.: 6 m³/h
(211.888 ft³/h)Min.: 0.6 m³/h
(21.1888 ft³/h)- Power
1.1 kW
(1.5 hp)
Description
horizontal multi-stage centrifugal pump
Max ambient temperature up to 40℃
Max fluid temperature up to 80℃
Max pressure up to 10 bar
Introduction
horizontal multi-stage centrifugal pump are designed to work with clean water in domestic applications, irrigation, industry, etc. the pump body is made of stainless steel, so that they are of beautiful design. at the same time, they have the advantage of low noise, easy operation and reliable performance.
Pumps should be installed in a covered area, protected against the weather.
Features
Pump Body: stainless steel
Motor Housing: aluminum
Shaft: 45# Steel /Stainless Steel
Impeller: Stainless Steel/PPO optional
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/metalized carbon
