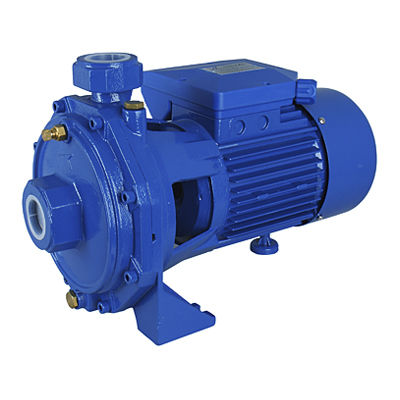

Centrifugal pump BP serieswaterself-primingindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Priming
- self-priming
- Domain
- industrial
- Applications
- irrigation, lift, distribution
- Material
- EPDM, stainless steel
- Other characteristics
- suction, mechanical, seal
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 8.4 m³/h
(296.6432 ft³/h)- Pressure
8 bar
(116.03 psi)- Power
0.75 kW, 1.1 kW, 1.5 kW
(1.02 hp, 1.5 hp, 2.04 hp)
Description
BP series Twin Impeller Centrifugal Pumps
- Pump body: cast iron
- Impeller: Brass
- Internal thermal protector
- Motor shaft: AISI 1045
- Mechanical seal: NBR/ Graphite/Ceramic
- Internal thermal protector.
Introduction
Twin impeller centrifugal water pumps to lift clean water and non-aggressive liquids. The main feature are the two opposite impellers which allow higher lifts than in the single-impeller model.
They are qualified for civil and industrial fittings, for water distribution by tank pressure groups and for irrigation in gardening and agricolture.
Features
Suction lift up to 6-8 m with foot valve
Maximum operating pressure :8 bar
Maximum ambient temperature +40℃
Liquid temperature up to +90℃
Maximum Altitude +1000m
Stainless steel welding shaft
AISI420/AISI304/AISI316 stainless steel shaft
FPM/EPDM/SIC/WC mechanical seal
Other voltage and frequency
Three phase power
