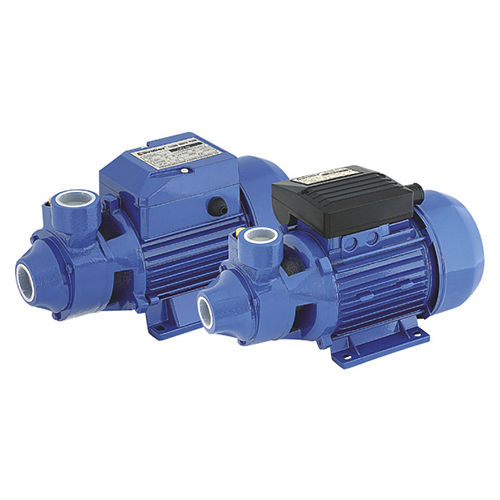

Vortex pump QB serieswaterself-primingindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- vortex
- Fluid
- water
- Priming
- self-priming
- Domain
- industrial
- Applications
- washing
- Material
- steel, ceramic
- Other characteristics
- mechanical, radial, seal
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 46 m³/h
(1,624.47467 ft³/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.038 psi)- Power
Min.: 0.37 kW
(0.5 hp)Max.: 1.1 kW
(1.5 hp)
Description
Introduction
The QB series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemically non-aggressive liquid. They have relatively simple construction and are very economical, reliable and safe. It is widely used for household and domestic applications such as water supply from wells and pools, pressure boosting, garden sprinkling, washing booths etc.
Features
Max ambient temperature up to 40℃
Max fluid temperature up to 80℃
Max pressure up to 10 bar
Construction features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel /stainless steel
Impeller: Brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon
