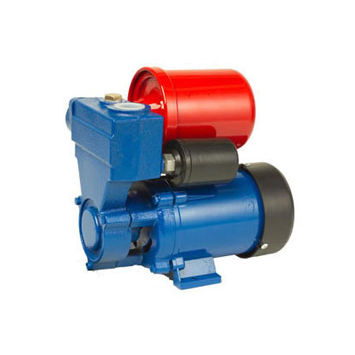

Peripheral pump DB serieswaterself-primingindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- peripheral
- Fluid
- water
- Priming
- self-priming
- Domain
- industrial
- Applications
- booster, lift, distribution
- Material
- EPDM, stainless steel, cast iron, brass
- Other characteristics
- suction, mechanical, automatic, small, seal
- Flow
Max.: 2.7 m³/h
(95.3496 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
8 bar
(116.03 psi)- Power
0.22 kW, 0.37 kW
(0.3 hp, 0.5 hp)
Description
DB Series Automatic booster peripheral self-priming pump
IEC 60034-1 - IEC 335-1
- IEC 34-1 - ISO 2548
Introduction
Volumetric water pumps able to offer high pressions in relation to comparatively low powers and which have particularly steady operating curves.
They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid impurities
Features
Stainless steel welding shaft.
- AISI420/AISI304/AISI316 stainless steel shaft.
- FPM/EPDM/SIC/WC mechanical seal.
- Other voltage and frequency.
- Three phase power.
Pump body/ motor support: cast iron.
- Impeller: Brass.
- Internal thermal protector.
- Motor shaft: AISI1045.
- Mechanical seal: NBR/ Graphite/Ceramic
Suction lift up to 6-8m with foot valve.
- Maximum operating pressure: 8 bar.
- Maximum ambient temperature: +40℃ .
- Liquid temperature up to +90 ℃.
- Maximum altitude +1000m
