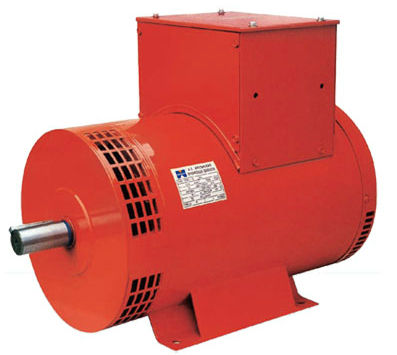

Three-phase alternator TFW2 seriesbrushlessindustrial
Add to favorites
Compare this product
Characteristics
- Phase
- three-phase
- Type
- brushless
- Domain
- industrial
- Voltage
Min.: 230 V
Max.: 400 V
Description
Conform to IEC standard and GB/T 15548-95.
Steady-state Voltage Adjusting Rate≤±2.0%.
Transient-state Voltage Adjusting Rate≤-15+20%.
Voltage Setting Range≥+10%UN.
Line Voltage Waveform Distortion Rate≤5%.
Voltage Deviation Rate under Three-phase Asymmetric load≤5%.
The average efficiency reach a word advanced level.
Main Technical
Environment Temperature≤40℃
Altitude≤1000m
Rated Frequency and Rotation Speed: 50Hz,
1500r/min. 60Hz, 1800r/min
Rated Voltage: 400/230V, three-phase four-wire system. Environment Relative Humidity≤90%
The alternators can be designed to be used in muggy
damp area or on boat.
