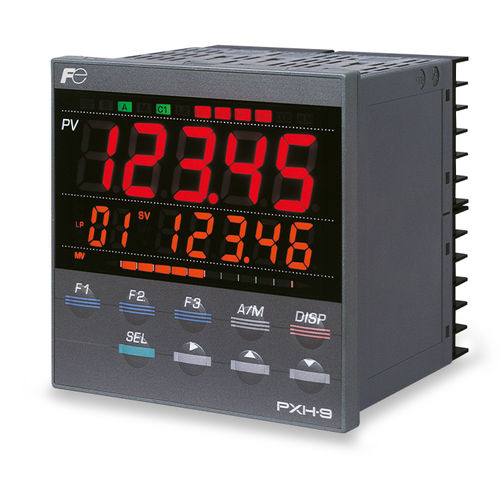

Multi-function controller PXH

Pre-installed programming templates allow easy configuration for various applications. Just by selecting appropriate "application template", input/ouput setting and internal calculation blocks can be utomatically configured. Parameter upload and download is easily made by using the parameter loader software. This software is available in standard. FUNCTIONS AVAILABLE IN STANDARD Receipe function Input linearize function Totalize function Math functions Application templates pre-installed PID PID + SV select PID + Mathematical module PID + SV select + Mathematical module PID + input select + Mathematical module Heat/cool control Heat/cool control + SV select Totalization Position feedback control Servo control Features Indication accuracy: 0.1% High speed control: 50 ms input sampling Motorized valve control (position feed back/servo control) Dual PID controller (Heat/cool control) Accepts various input: thermocouple, RTD, voltage, or current Powerful - Math functions Integrated totalize function RS-485 Modbus communication function and transmitter power supply
