Flue gas analyzer ZSS

stack gasconcentrationfor integration

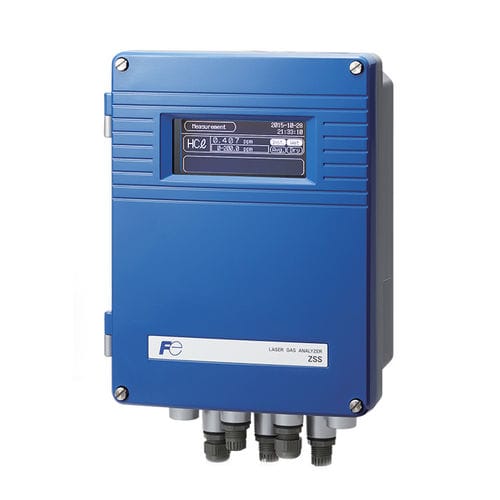

Cross Stack Laser Gas TDL Analyzer - ZSS Continuous measurement, low maintenance and long-term superior stability ZSS Tunable Diode Laser (TDL) gas analyzers provide continuous measurement of gaz concentration : CO and O2 with ZSS dual beam TDL analyser (ZSS-D) HCl contained in flue gas in municipal waste incineration plant and industrial waste disposal facility, NH3 in power plant and denitration equipment, CO, CO2 and O2 in iron and steel plant and chemical plants, with the ZSS single beam analyzer (ZSS-S) ZSS is installed directly on the flue pipe where target gas flow to be measured. Preparation is not required for measured gas to be introduced to the analyzer ( which is required for sampling method). This gas analyzer can be used under high dust conditions. It is possible to install upstream of the bagfilter where gas sampling is normally difficult. Features Excellent long-term stability : +/- 2.0% FS (zero drift) Ultra-high speed response : 1 to 5 seconds (High speed response for 1 or 2 seconds is applicable) Direct insertion system eliminates the need for maintenance Air purge method is adopted for O2 meter which is no need of nitrogen gas Negligible interference by others gas components Measurement in a high-temperature/high particulate concentration environment Energy-saving 75VA power consumption CO + O2 analyzer has joined our product line
