Relative pressure transmitter PFA

differentiallow pressurehigh static pressure

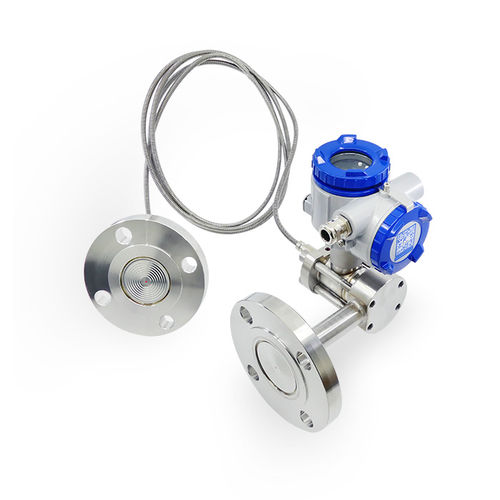

High accuracy differential pressure transmitters for your measurements from 1 mbar to 30 bar. Reliable pressure transmitters adapted to your industrial instrumentation. The differential pressure (dp) is the difference in pressure between two pressures. The differential pressure sensor compares two pressures: A reference pressure on the low pressure side (LP) A pressure on the high pressure side (HP). The differential pressure sensor converts the pressure difference into an electronic signal. For applications with very low or very high temperatures, the differential pressure sensors can be equipped with one or two diaphragm seals. To measure a differential pressure to monitor a pump for example To measure a pressure drop, to monitor a filter clogging for example To measure a liquid or gas level continuously, for example for a pressure tank The high pressure (HP) side of the sensor cell measures the pressure. The low pressure (LP) side of the sensor cell measures the pressure of the gas atmosphere The pressure difference between the high and low pressure sides allows the transmitter to calculate the level. The density must be constant to guarantee the accuracy of the measurement. To measure a volume or mass flow of a fluid (liquid, gas, steam). In this last case, it is associated with a deprimogen which creates a differential pressure according to the flow of a fluid. To measure an interface or a density. Numerous applications: flow, level, filtration, density, interface. Robust design withstands high static pressure. Improved accuracy compared to using two relative pressure sensors. Measures very small measuring ranges.
