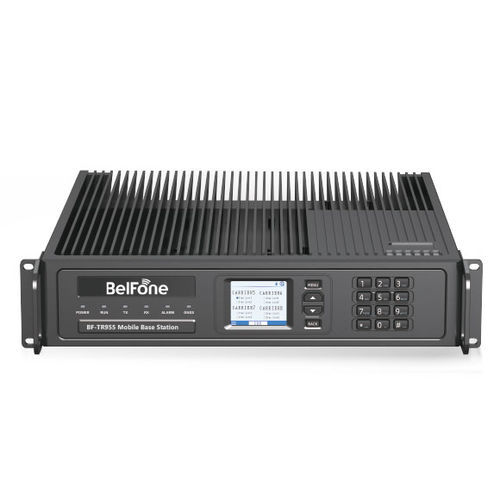

Mobile network base station BF-TR955

for wireless networksdata transmissionwireless telemetry radio

BF-TR955 is an integrated mobile base station that designed compact structure, featured flexible deployment and wide applications. It is the best choice for emergency rescues, patrolling, and other emergency scenarios to establish Trunking communication network and achieve unified dispatching. High Reliability IP65 Protection Highly Integrated 2.8-Inch Display Flexible Deployment DPD Technology Wide Coverage 5-Carriers & 8-Carriers • Frequency RangeUHF3：350-400MHz; UHF1：400-470MHz • Carrier Frequency: 5 or 8 • Multiple Access: TDMA • Slots: 2/carrier frequency • Modulation: 4FSK，Modulation Index: 0.27 • Carrier Spacing: ≥250kHz • Operating Bandwidth: 5MHz(UHF) • Duplex Spacing: 10MHz(UHF) • Working Voltage: +48V DC; Customized 24V DC • Limit Voltage: +43V～63V • Maximum Power Consumption: ≤200W • Working Temperature: +15℃～+35℃ • Limit Temperature: -25℃～+55℃ • Storage Temperature: -40℃~+85℃ • Humidity: 5%RH～100%RH • Atmospheric Pressure: 53.5KPa～106KPa • IP Grade: IP65 • MTBF: 100,000 hours • MTTR: 30Minutes • Weight: ≤16Kg • Dimensions(W*L*H): ≤440mm*390mm*88mm
