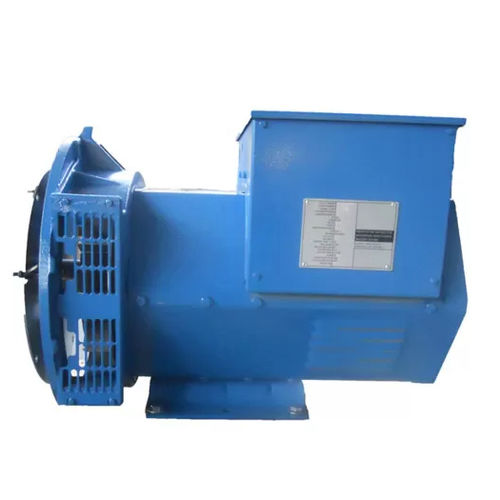

Three-phase alternator BCI184G

brushlessmarine

50Hz 230V 25 Kw Brushless Alternator 100% Copper Stamford Single Phase Power: 25KW/31KVA Winding: 100% Copper Wire Insulation Class: H Class Output Type: AC Three Phase Protection Class: IP23 Frequency: 50HZ Speed: 1500RPM Rated Voltage: 380V / 400V / 440V 50Hz 230V 100% Copper Stamford Single Phase Brushless Alternator 25kw Features : 1 . Type: three phase brushless AC synchronous alternator generator 2 . Brushless, slef-excited, insulation class H with high temperature 180°C, so can reliablly run in bad conditions. 3 . Fine dynamic characteristics when load or unload suddenly TIF<50, THF < 2% 4 . The alternators with high quality of AVR have excellent properties 5 . Start connection 6 . The generators are suitable for moist tropical and marine conditions if required. Insulation and Protection : Insulation : H, Protection: IP21-23 The components such as rotor and exciter are specially impregnated with tropical grade insulating oil and acid resisting polyest resin. Providing the high build required for static winging and the high mechanical strength required for rotating components. Main Index : 1 . Rated voltage 400V, 110V-480V for option 2 . Three phase, single phase for option 3 . Drip-leak-proof structure: IP22/23 protection class 4 . Insulation class H 5 . Adjusting rate of stable voltage≤1% 6 . Transient state voltage≤-15% - +20% 7 . Wave aberration rate of voltage THD≤3% 8 . Telephone harmony wave factor of telephone THF≤2% 9 . Telephone effective factor of telephone TIF≤50 Operating Conditions : 1 . Cooling air temperature: -15 °C ~41 °C 2 . Altitude above sea level: 1000 meters 3 . Relative humidity: up to 90%
