High-temperature fan GKT series

axialdryingmotor

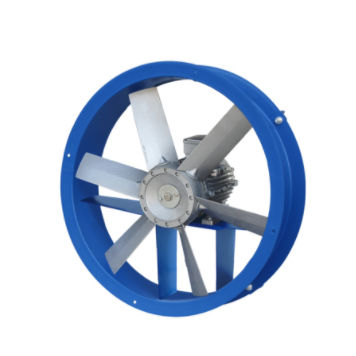

SERIES HIGH TEMPERATURE HIGH HUMIDITY AXIAL FAN GKT series high temperature high humidity axial ventilator fan is widely used in drying kiln, painting workshop, warehous, basement. etc.The axial fan is novelty structure and high performance. The fan has characteristic of resistanting to high-temperature, large air volume, high pressure, energy-efficient,low noise, convenience maintenance, etc. As a gas transportation fan without corrosive gas, palpable & gray scale, the gas has no more than 150mg/m³ dust and hard particles. As the blades diameter is different, there are 11 model, NO.2.5、3、3.5、4、5、5.5、6、7、8、9、10.The angle of fan can be adjusted according to the clients' requirements. The fans blades can be direct connected with the motor. The circumferential velocity of the impeller does not exceed the condition, there are three different rotational speed: 2900r/min, 1450r/min, 960r/min. Since the frame size and the blades diameter are different, the installation angle of the blades, speed of main shaft is different. Air flow, air pressure and motor output are different. The air pressure from 60Pa to 410Pa, the air flow from 1000m³/h to 43000m³/h.(details as per performance table ) APPLIED CONDITIONS Max. Ambient Temp:<130℃，Relative humidity:≤98%, In the ambient of weak acid, weak alkali, vapor and no flammable gas, the motor can be also used in the vacuum drying equipment according to the specific conditions
