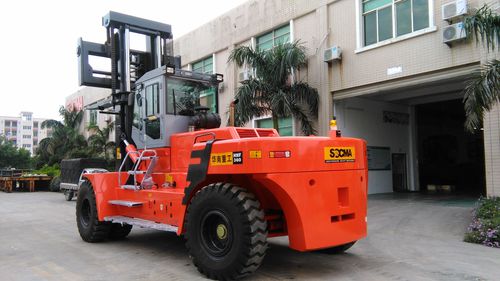

Diesel forklift HNF-400

ride-oncounterbalancedcompact

1, adopt Cummins, Weichai turbocharging engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation. 2, use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition, the transmission system more reliable. 3, adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation. 4, Variable speed control valve matched with neutral starter, the machine start more secure. 5, front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structure bridge shell support, increase the load capacity and service life. 6, No spokes plate type rim, increase the bearing capacity of hub. 7, rear axle by transverse hydraulic cylinder type steering, steering axle has compact structure, transmission angle is 70.5 °, help to reduce the resistance and reduce tire wear and improve the driving comfort. 8, using four heavy caliper disc brake, thicken brake disc, the rear air tank, 18 times braking pressure strength ratio, heat dissipation faster, reliable and safe operation 9, hydraulic load sensing steering system, rear steering axle with small turning radius, flexible and light steering 10, adopt double pump confluence working hydraulic system, greatly reduce fuel consumption, energy consumption. Hydraulic system equipped with oil radiator and back pressure protection device, ensure the machine heat balance
