Temperature test chamber WIPGC-01

humidityverticalstainless steel

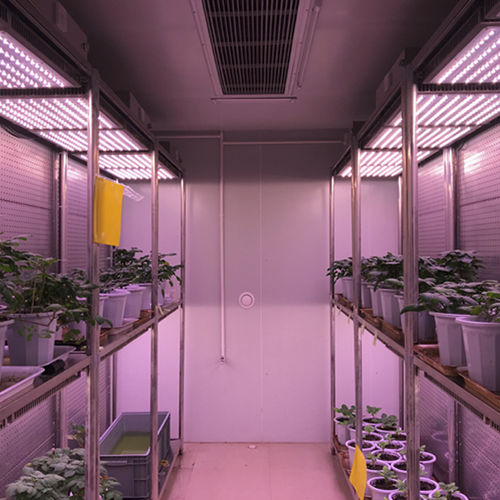

LED Lighting Rooms Model No. WIPGC-01 Designed by JIUPO, multiple applications for tissue culture, small plant, tall plant growth. Key Features • Wide performance range, enabling greater control of climatic conditions • Flexible lighting options for uniform intensity and optimal plant growth, 0~100% dimmable adjustment • Optimal internal thermodynamics to ensure uniformity of climatic conditions • Equipped with flexible shelving • Nonpolluting construction and cooling • Equipped with JIUPO updated smart controller, smart phone APP remote control system Construction • Exterior: Polyurethane Insulated Panels Class M1 according to EN 14509, “sandwich type” with 75/100 mm thick, galvanized steel finish with white plastic. CFC-free • Floor: Anti-slide & anti-bacteria grey textured PVC • Walls: Vertical laminar Stainless steel SUS 304 with 8 mm ∅ airflow holes hollowed out • Structures and Shelves: Easy cleaning & easy installing stainless steel SUS 304, height adjustable • Door with gasket, observation window, lockable mechanism from both insides • 75 mm ∅ port for cables and other connections Air Flow • Forced in upward direction, with electronic adjustable air speed • Vertical laminar airflow across all growth area to assure uniformity and stability • Variable air renewal through adjustable port or positive pressure generation Control Panel On the right or left side of the room and equipped with: • JIUPO updated Programmable Controller • Safety audible alarm • Indoor illumination ON/OFF button • ON/OFF Mains lockable-switch • Data loading USB port Heating On the right or Tubular stainless steel electric resistors
